Product Specification

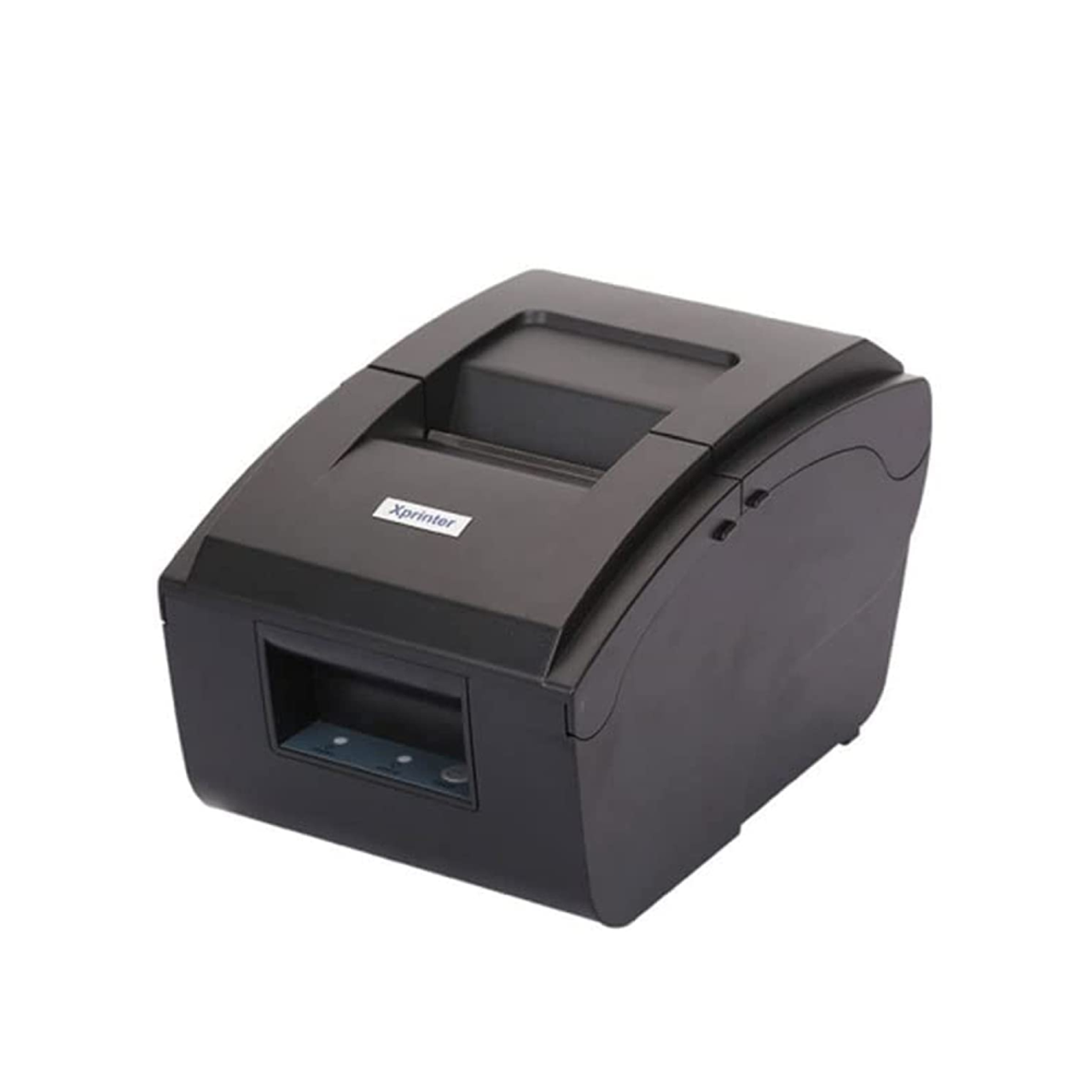

XPRINTER Dot Matrix Compact POS Receipt | XP-76IIH
-
9 Pin Impact Dot Matrix Printing
-
Black mark sensor
-
Bi-directional printing
-
Three-play capable
-
International language options
-

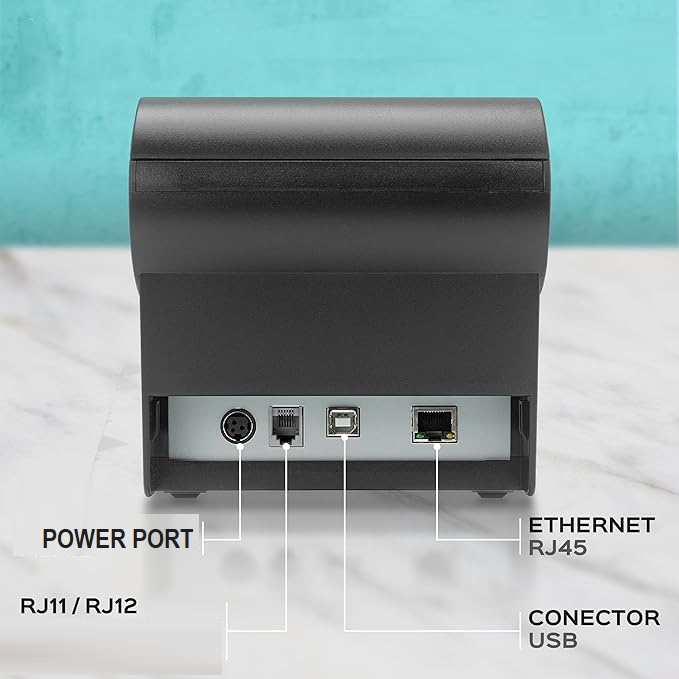

Available USB and Ethernet Interface
-
Compatible with ESC/POS
| Printing | |
| Printing method | 9-Pin serial impact dot-matrix printing |
| Printing width | 63.5mm |
| Column capactity | 400 dots/line |

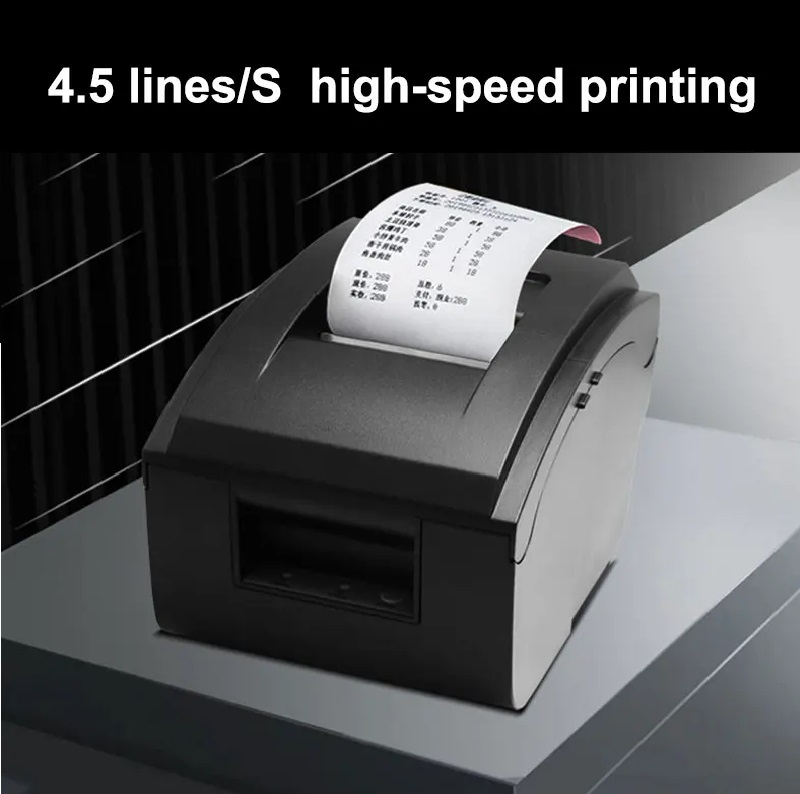

| Printing speed | 4.5 line/s |
| Interface | Parallel/USB |
| Printing paper | 75.5±0.5mm×φ80mm(max) |
| Line spacing | 4.23mm (Adjustable by commands) |
| Character size | ANK，Font A: 1.6×3.1mm（9×9 dots） Font B: 1.2×3.1mm（7×9 dots）Chinese,traditional Chinese: 2.7×2.7mm（16×16 dots） |
| Column number | 76mm paper: Font A – 32 columns /Font B – 42 columns / Chinese,traditional Chinese – 16 columns |
| Character | |
| Extension character sheet | PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian-French）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251） |
| Power | |
| Power adaptor | Input：AC 110V/220V, 50～60Hz |
| Power source | Output：DC 24V/2.5A |
| Cash drawer output | DC 24V/1A |
| Cutter | |
| Auto cutter | Partial |
| Physical characteristics | |
| Gross weight | 1.28KG |
| Dimensions | 220×150×140mm (D×W×H) |
| Environmental Requirements | |
| Work environment | 0～45℃, 10～80% RH |
| Storage environment | -10～60℃, 10～90% RH（no condensation） |
| Reliability | |
| Printer head life | 10 Million Lines |
